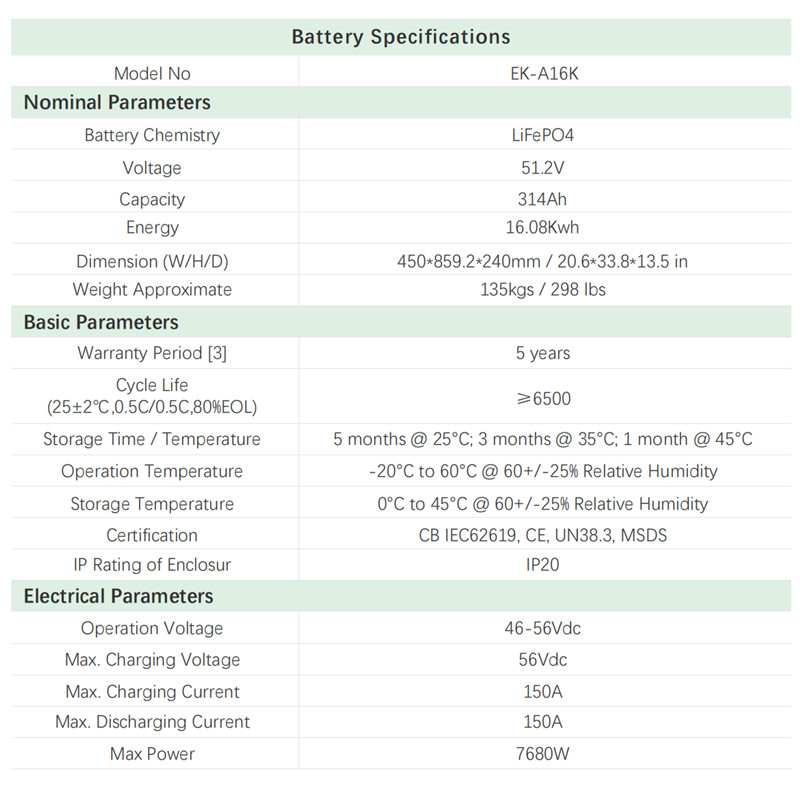

Model:EK-A16K
Rated Capacity:314Ah
Rated voltage:51.2V DC
Rated Energy:16.08Kwh
Operating Voltage:44.8V~58.4V
Max.Discharge Current:150A
Max.Discharge:150A
Peak Current:300A
IP Grade:IP20

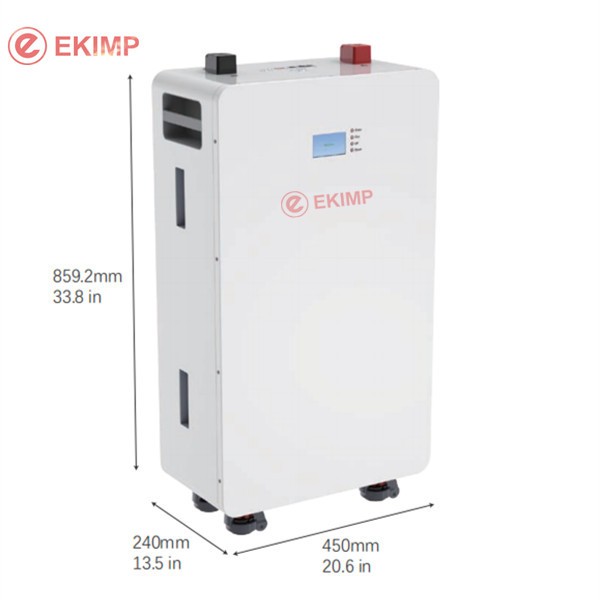

Dimension:450*859.2*240mm
Weight:135Kg
1.Long life and safety
Vertical industry integration ensures more than 6500 cycles with 80% DoD. Safe Lithium iron phosphate battery cell.
2.Intelligent
Each battery with independent BMS system manages power output smartly and effectively.
3.Modularization
Modular design gives the end customers the power of choice of capacity Deliver up to 241.2kWh with single max module (16.08KWh) at 15pcs parallel connection.
4.Easy to install and use
Just plug and play to minimize the installation time and cost. Compact and fashionable design fits in your sweet home environment.
5.Compatiblity
Compatible with most of the available Hybrid inverters.
6.Safety Cert
CB IEC62619, CE, UN38.3, MSDS
