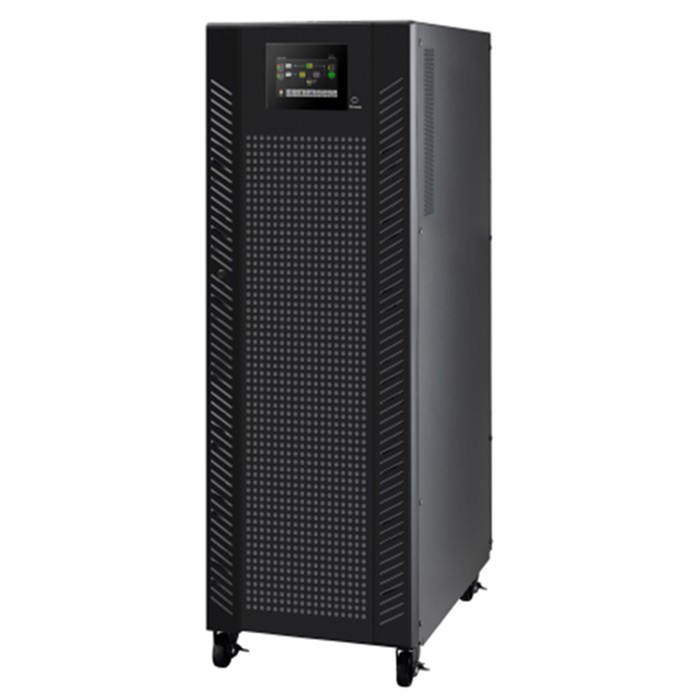

3/3 80KVa 80KW online UPS

Ekimp EK-33-80KL 3/3 High frequency ture double conversion 80Kva 80kw online ups Double input

Backup power system

Rated Power: 80 kVA (80 kW)

Topology: Online double-conversion

Input/Output Configuration: 3-phase input / 3-phase output (3-3)

Design: Monoblock construction

Efficiency (On-Line mode): 96.6%

Power Factor (Output, pf): 1.0

Input Frequency Range: 40–70 Hz

Output Waveform: Pure sine wave (both in mains and battery operation)

Input Power Factor: 0.99

Operating Temperature Range: 0 – 40 °C (without power derating)

Nominal Output Voltage: 380 / 400 / 415 V

Output Frequency Range: 50–60 Hz

Overload Capacity (Inverter Mode): 120% continuous operation

Input Voltage Range: -25% / +20% at 100% load; -35% / +20% at 60% load

Monitoring & Communication: Equipped with network monitoring cards supporting SNMP, temperature sensors, and temperature-compensated battery charging

Display: Color touchscreen for UPS monitoring and control

UPS Dimensions (H × W × D): 1000 × 300 × 600 mm

Eco-Mode Efficiency: 99%

Protection: Reverse current protection

Battery Bank Configuration: Flexible selection up to 50 units

Backup Time: 5 minutes at full load (80 kW)

Battery Type: Sealed lead-acid (VRLA)

Battery Voltage: 12 V

Discharge Capacity: 95 W/cell at 15-min discharge, 1.67 V/cell (at 25 °C)

Nominal Battery Capacity: 28 Ah

Battery Dimensions (L × W × H): 166 × 125 × 174 mm

Battery Weight: 9.7 kg

Battery Service Life: 5 years (design life)

Battery Consistency: All batteries of the same type, manufacturer, and capacity

Battery Cabinet: Batteries installed in a single cabinet from the same manufacturer as the UPS
